Registries get messy. Every build pushes another version, and before long a project is full of old images nobody needs, while the one tag that must never change is one careless push away from being overwritten. Harbor has two rules for exactly this, and they live together on the Policy tab. One cleans up, the other locks down.

Two rules, opposite jobs

You will usually want both: retention to stay tidy, immutability to protect your releases.

Set up tag retention

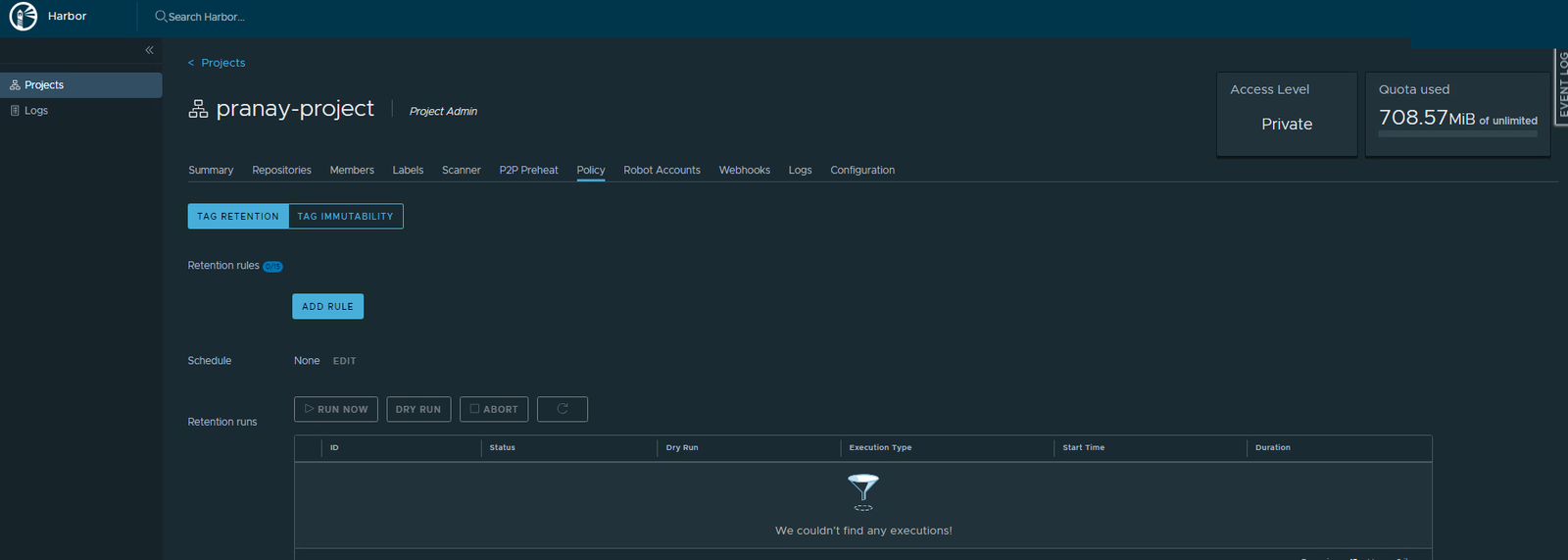

Open your project and click the Policy tab. You start on Tag Retention, with no rules yet.

1. Click Add Rule.

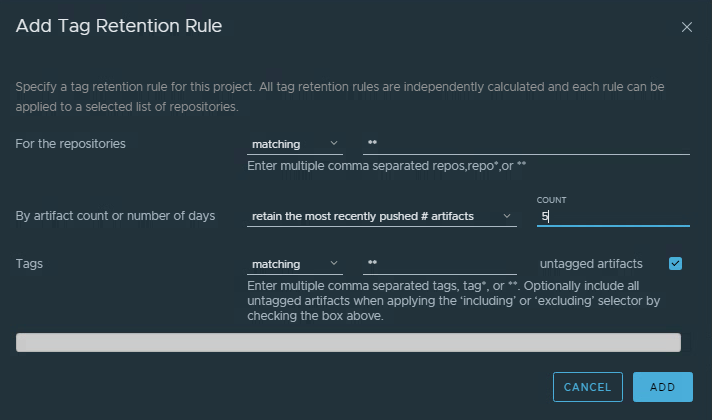

2. In the dialog, leave For the repositories on matching ** (every repo). For the rule itself, choose retain the most recently pushed # artifacts and set the count to 5. Leave Tags on matching **. Click Add.



3. Your rule now shows in plain English at the top of the tab.

Always dry run first

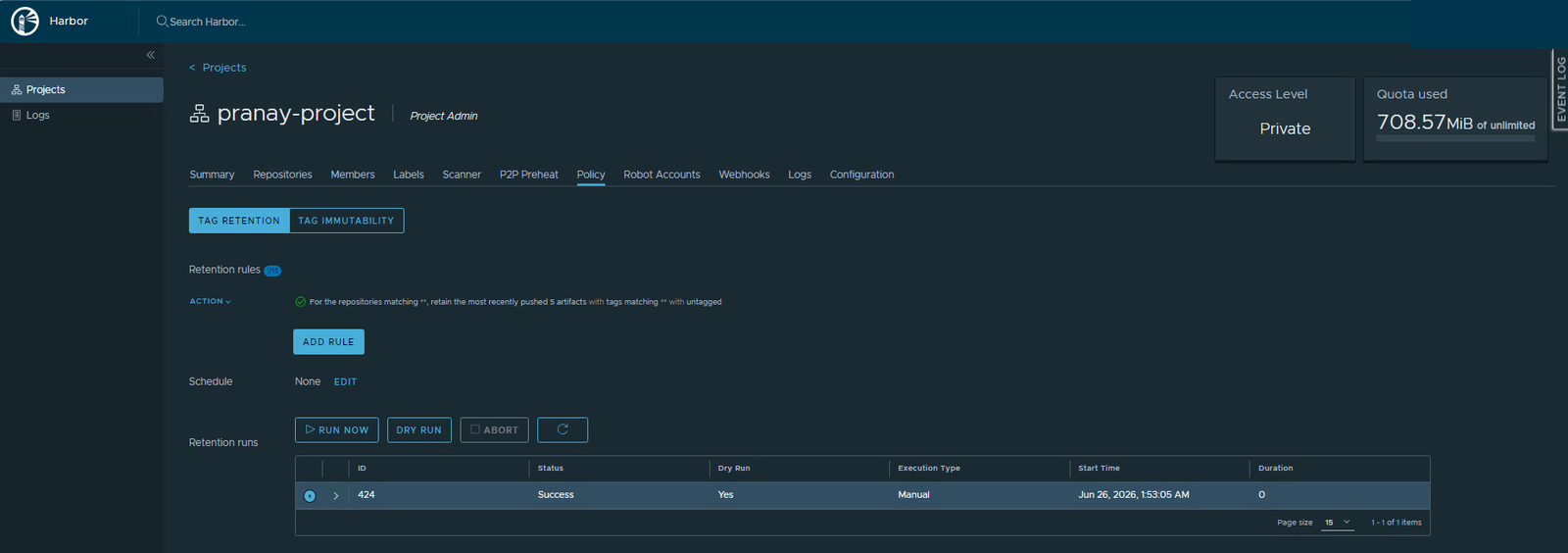

Never let a retention rule loose without previewing it. Click Dry Run. It calculates exactly what it would delete and deletes nothing. When the run finishes with Success, you can trust the rule.

Run it on a schedule

A rule you have to trigger by hand is easy to forget. Give it a schedule so it cleans up on its own.

1. Next to Schedule, click Edit.

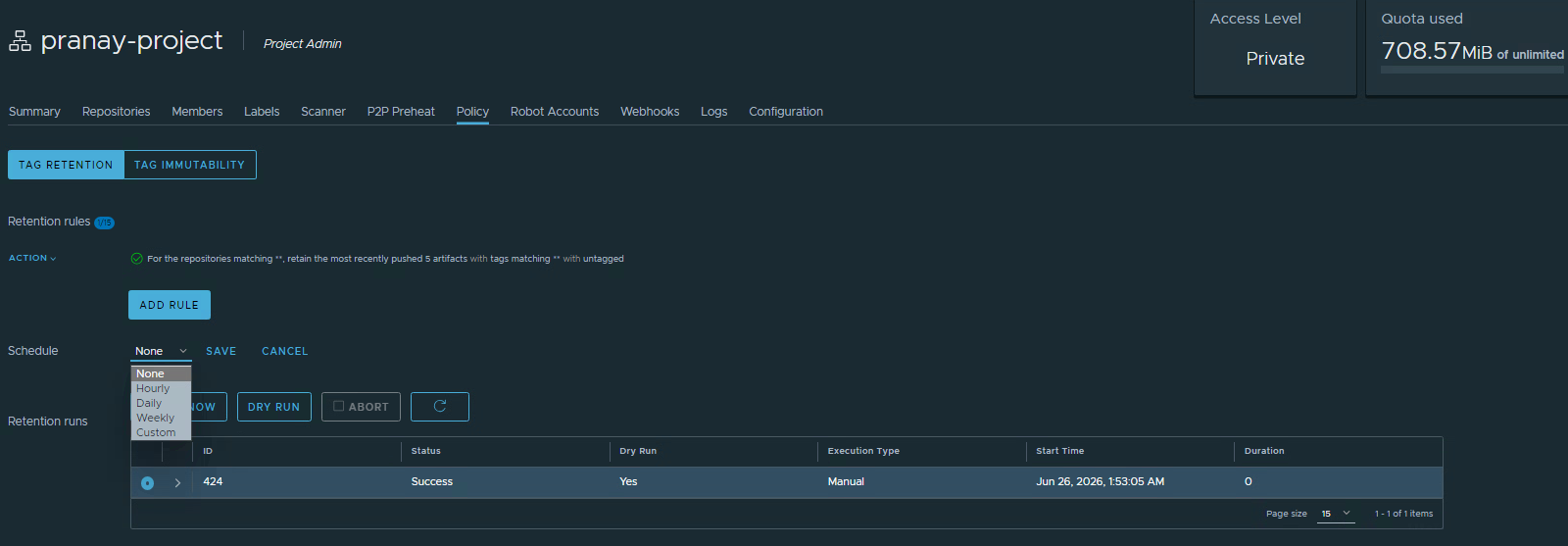

2. Pick a cadence from the dropdown, Daily is a sensible default. There is also Hourly, Weekly, or a Custom schedule.
3. Click Save.

Lock tags with immutability

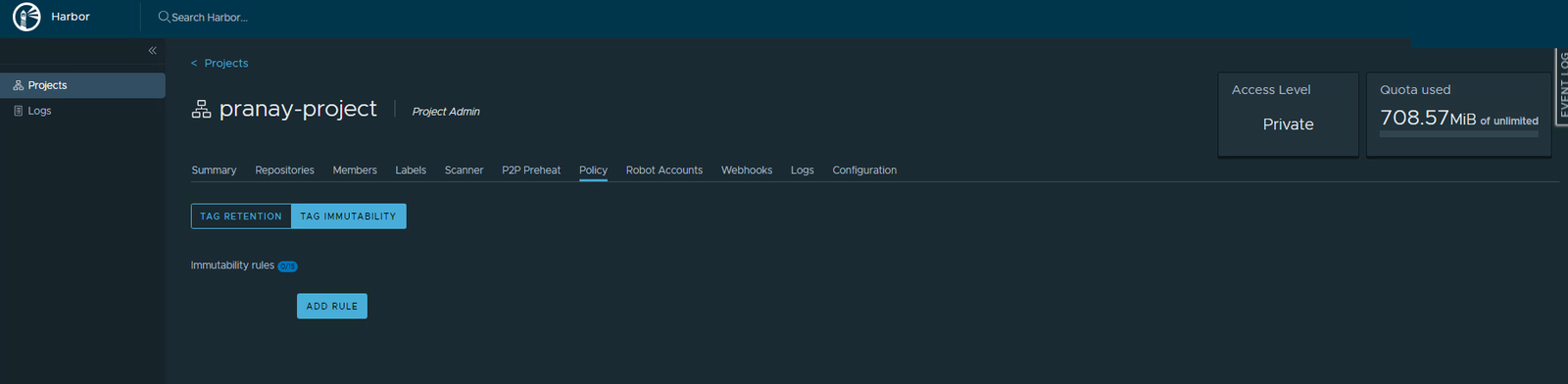

Retention removes old versions. Immutability does the opposite job, it protects the versions that must never change. Switch to the Tag Immutability tab.

1. Click Add Rule.

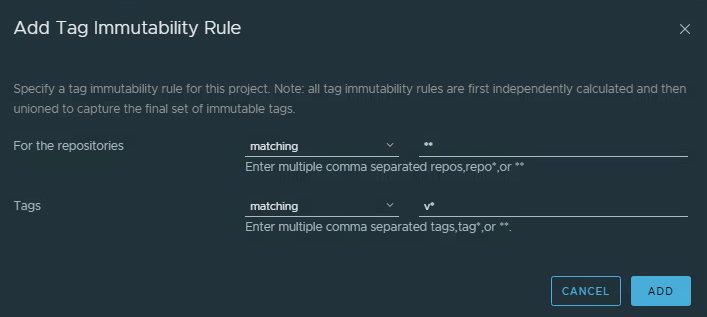

2. Leave For the repositories on matching **. For Tags, choose matching and enter a pattern like v* so every tag that starts with v is protected. Click Add.

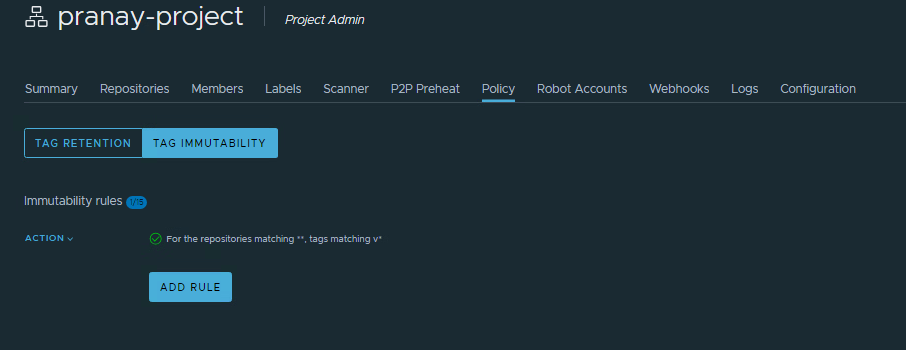

3. The rule appears, and your v1 and v2 tags are now frozen.

What immutability blocks

Once a tag is immutable, Harbor refuses two things on it: overwriting it with a different image, and deleting it. If you try to push a new image over hello-world:v1 now, the push is rejected with a message that the tag is immutable. That is exactly what you want for a released version, so nobody can quietly swap out what v1 means after the fact.

Quick recap

1. Both rules live on the project’s Policy tab.
2. Retention keeps the most recent versions and clears out the rest. Always dry run first, then put it on a schedule.
3. Immutability locks chosen tags so they cannot be overwritten or deleted.
4. Use retention to stay tidy and immutability to protect your releases.

Harbor for Beginners, Part 9 of 12. Product names belong to their owners.
